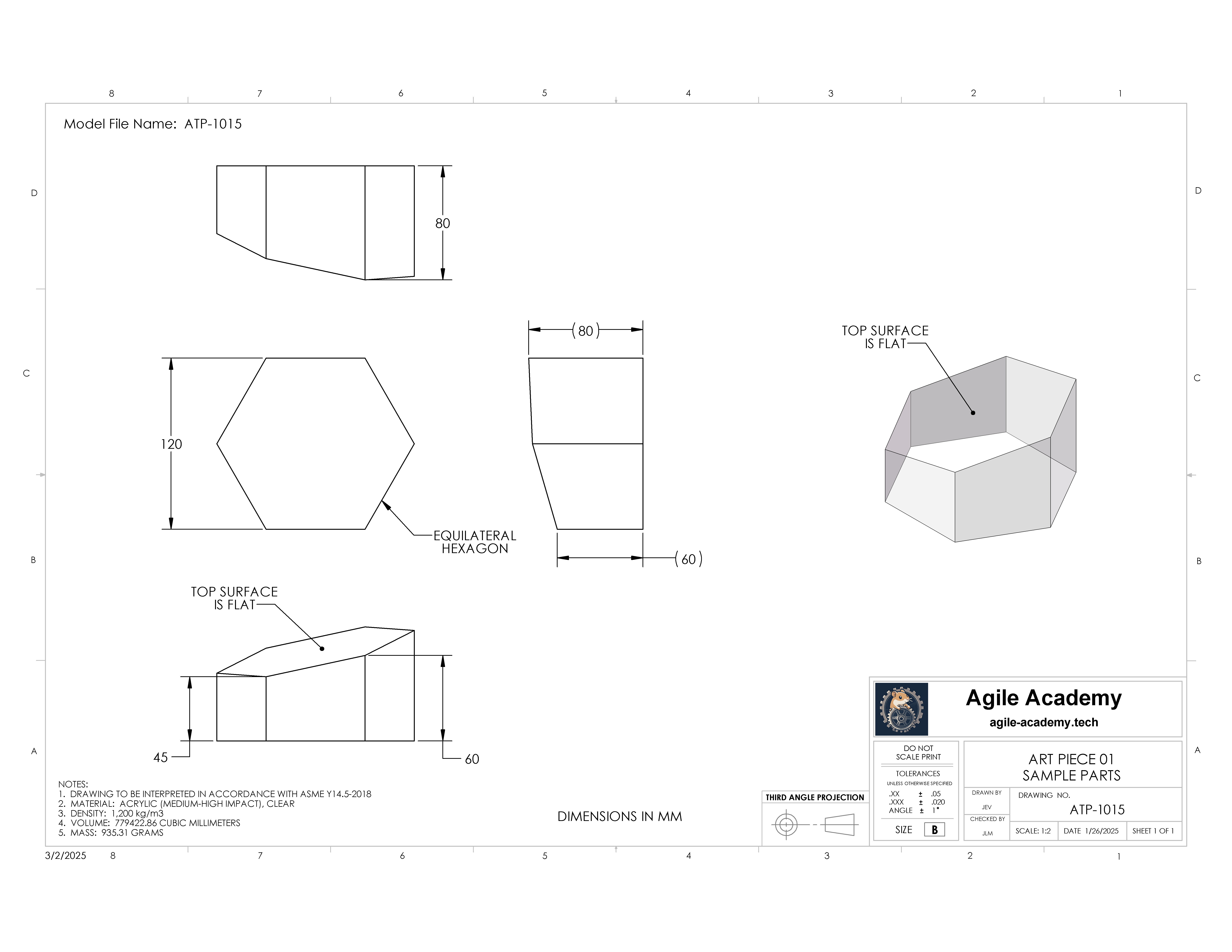

SolidWorks study part ATP-1015

This is an acrylic art piece drawn in millimeters. It is made of Acrylic (Medium-High Impact) with a density of 1,200 kg per cubic meter.

The finished part has a volume of 779,422.86 cubic millimeters and a mass of 935.31 grams.

Reminder: The challenge of modeling this part is accurately defining the cut plane for the top surface.

The associated files may be downloaded below.
