SolidWorks study part ATP-002

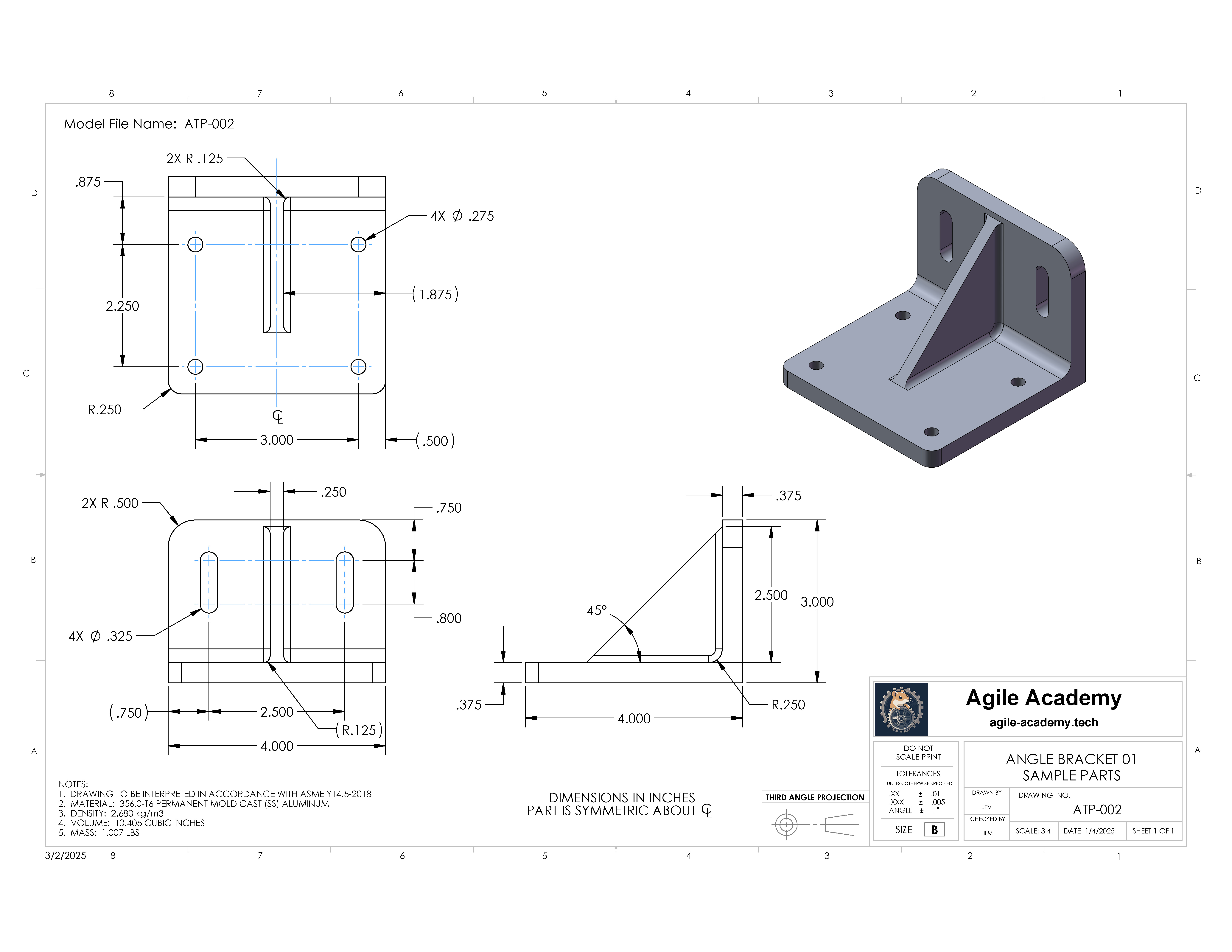

This is an aluminum angle bracket drawn in inches. It is made of 356.0-T6 permanent mold cast (SS) aluminum with a density of 2,680 kg per cubic meter.

The finished part has a volume of 10.405 cubic inches and a mass of 1.007 pounds.

Reminder: This part is symmetric about the centerline.

The associated files may be downloaded below.
