SolidWorks study part ATP-005

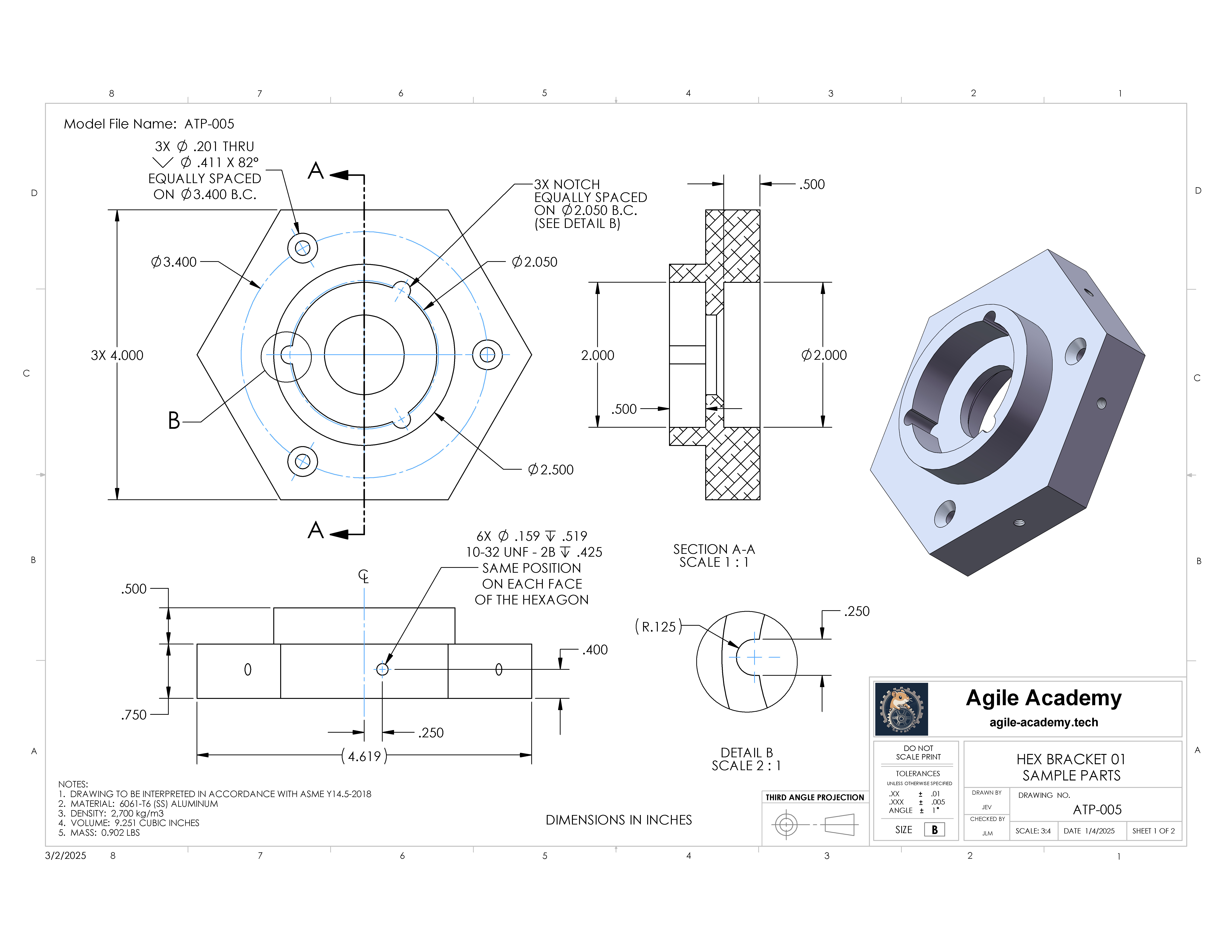

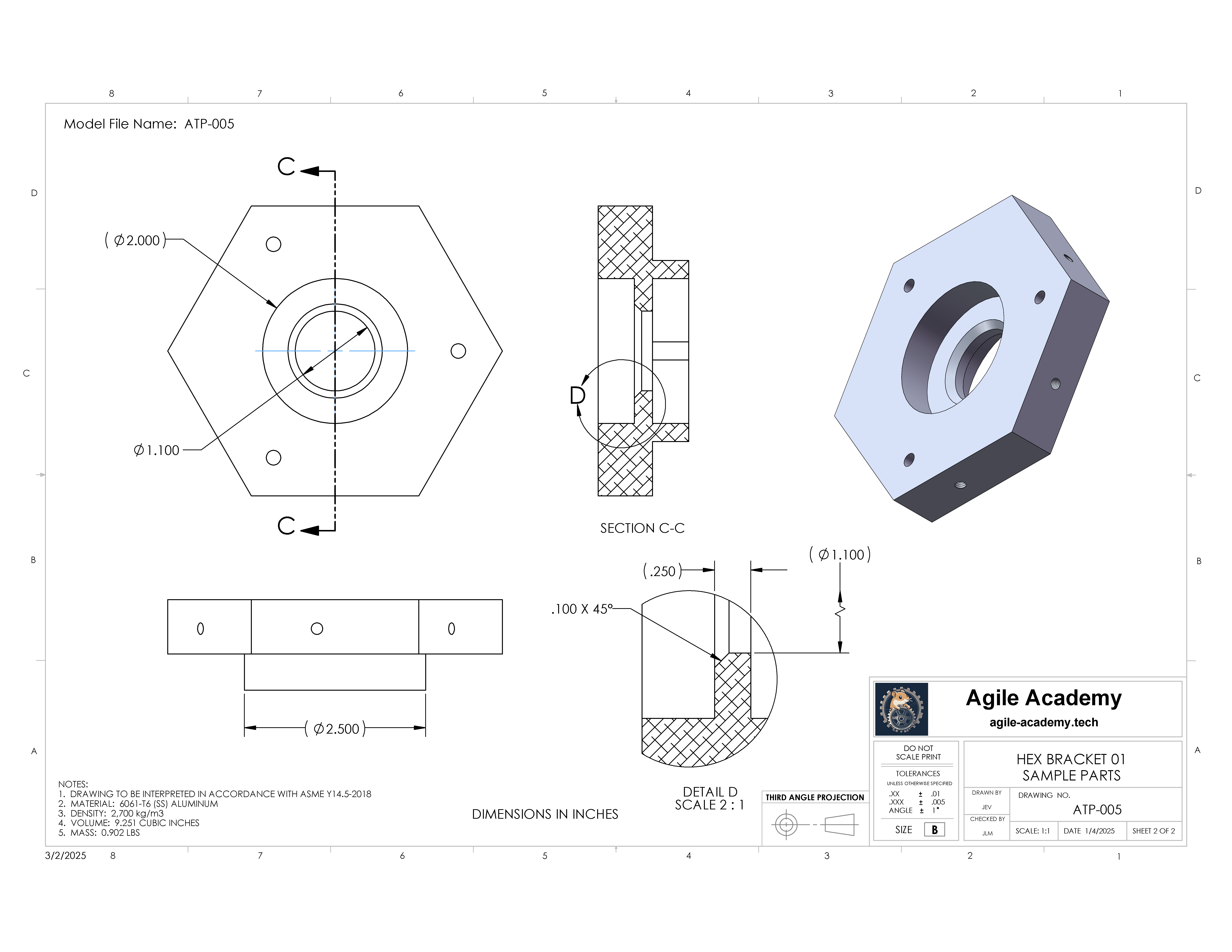

This is an aluminum hex bracket drawn in inches. It is made of 6061-T6 (SS) aluminum with a density of 2,700 kg per cubic meter.

The finished part has a volume of 9.251 cubic inches and a mass of 0.902 pounds.

Reminder: The drill depth of the threaded holes does not include the conical tip of the drill. This is an option (Depth up to Shoulder) when specifying drill depth with the Hole Wizard.

The associated files may be downloaded below.
