SolidWorks study part ATP-006

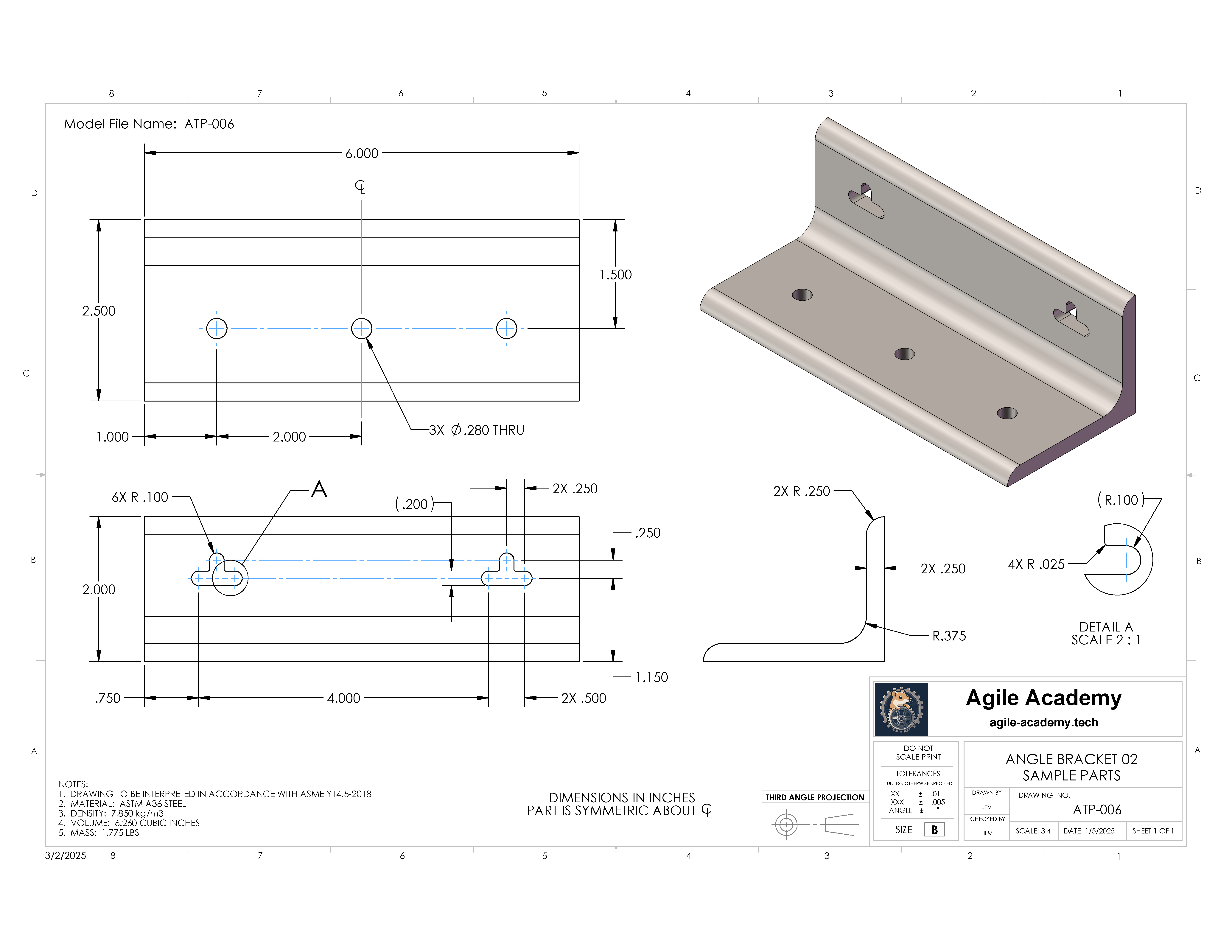

This is a steel angle bracket drawn in inches. It is made of ASTM A36 steel with a density of 7,850 kg per cubic meter.

The finished part has a volume of 6.260 cubic inches and a mass of 1.775 pounds.

Reminder: This part is symmetric about the centerline.

The associated files may be downloaded below.
