SolidWorks study part ATP-030

This particular part was inspired by an official SolidWorks practice problem for the CSWA exam. I found it to be interesting and decided to include it here.

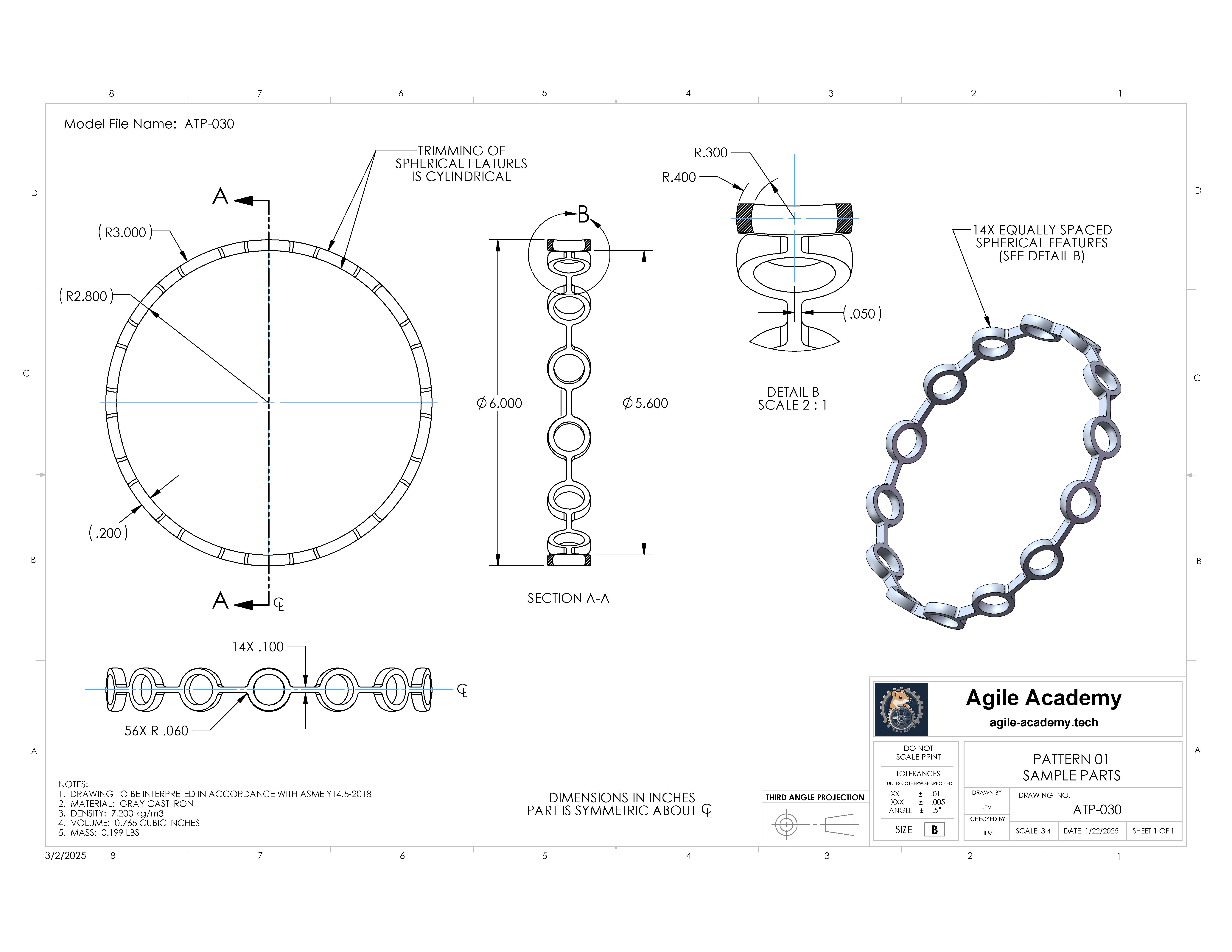

This is an iron decorative pattern drawn in inches. It is made of gray cast iron with a density of 7,200 kg per cubic meter.

The finished part has a volume of 0.765 cubic inches and a mass of 0.199 pounds.

Reminder: This part includes both cylindrical and spherical details.

The associated files may be downloaded below.
