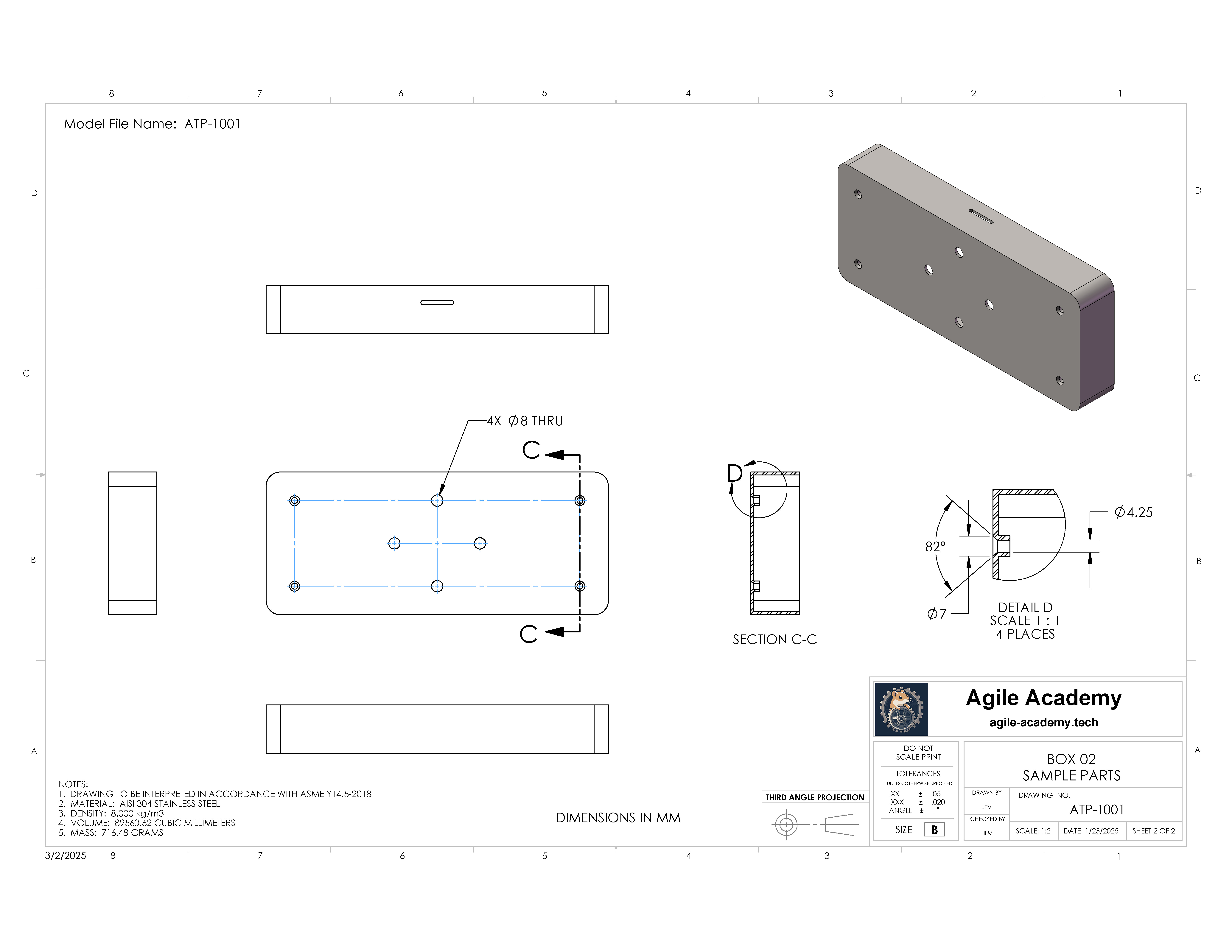

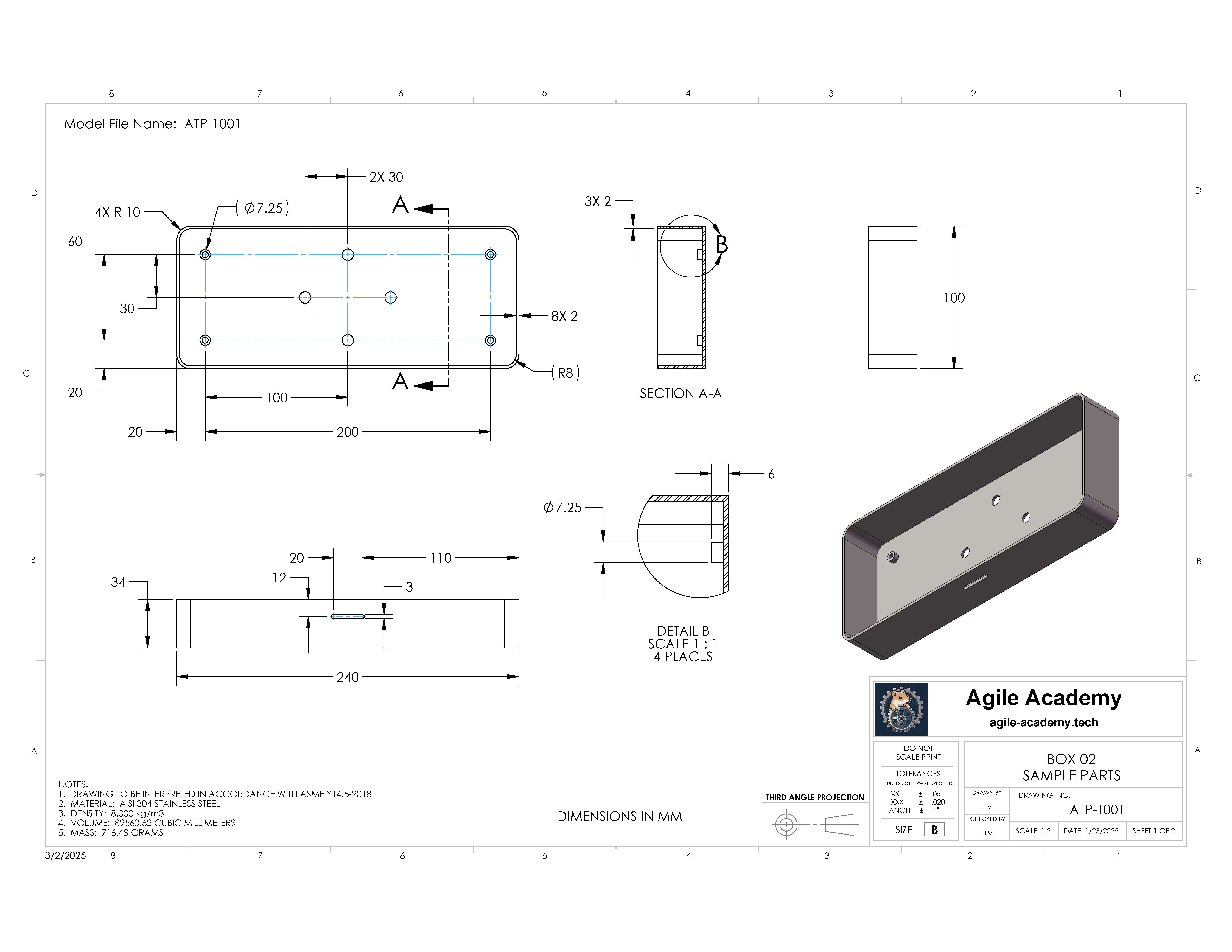

SolidWorks study part ATP-1001

This is a stainless steel box drawn in millimeters. It is made of AISI 304 stainless steel with a density of 8,000 kg per cubic meter.

The finished part has a volume of 89,560.62 cubic millimeters and a mass of 716.48 grams.

Reminder: This part has uniform wall thicknesses, except for the four internal bosses.

The associated files may be downloaded below.
