SolidWorks study part ATP-1003

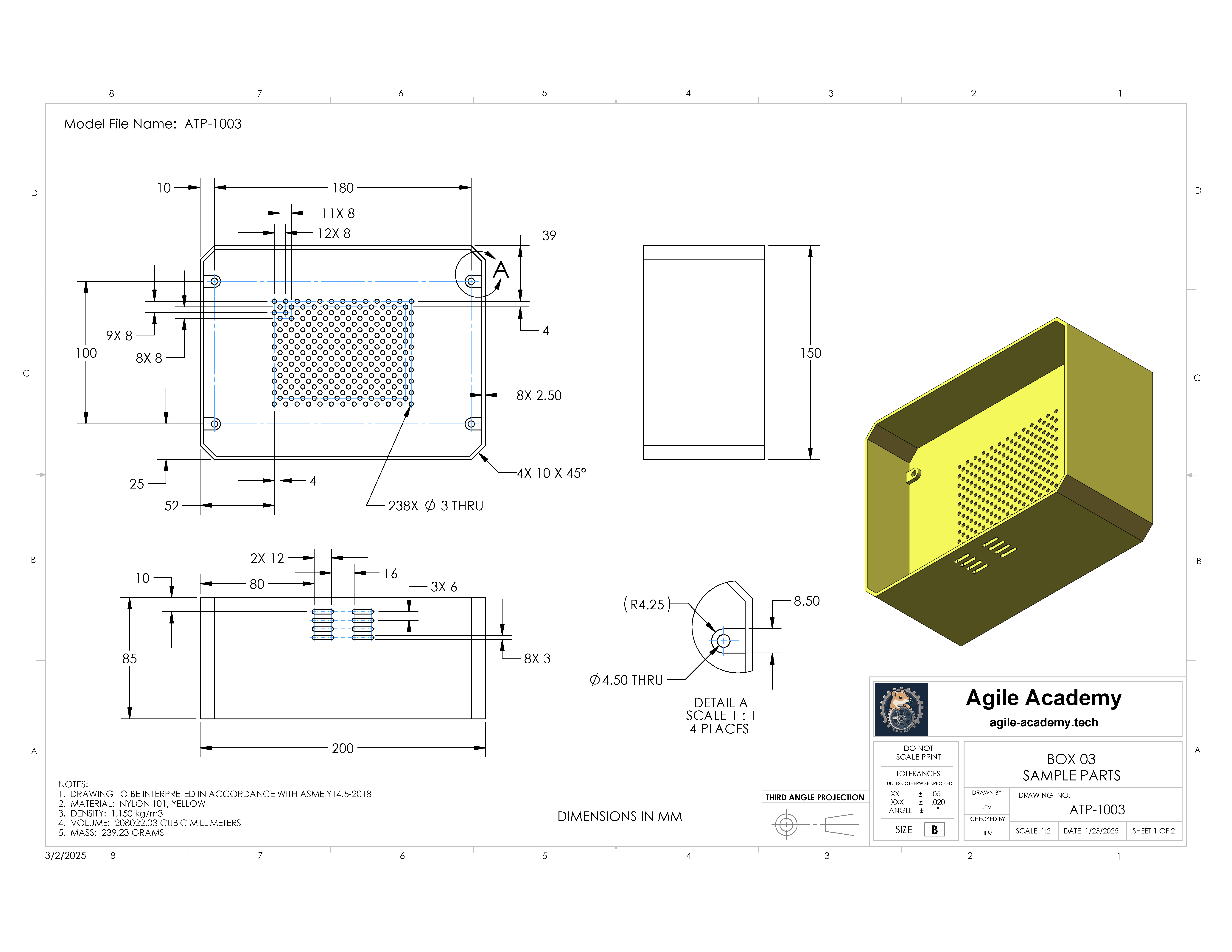

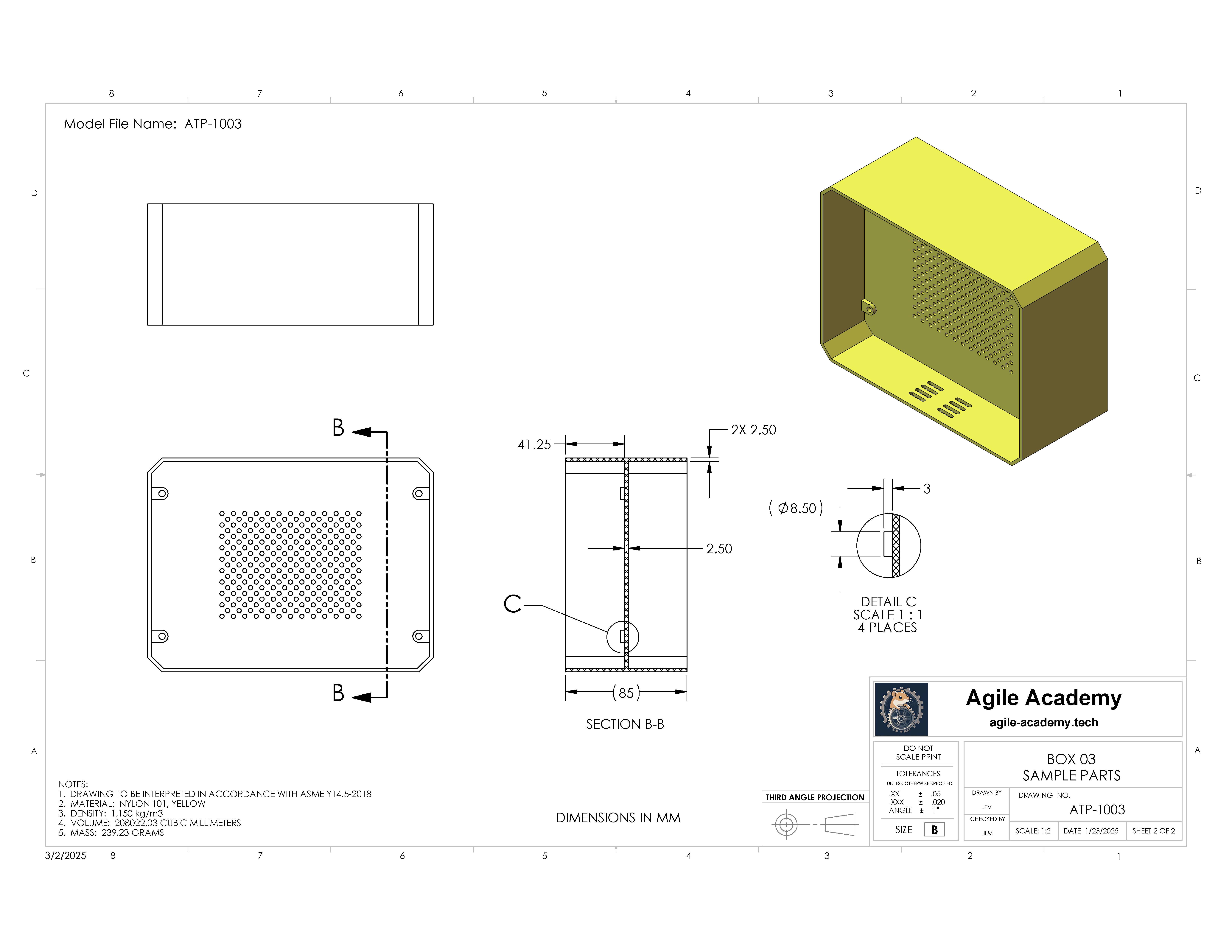

This is a nylon box drawn in millimeters. It is made of Nylon 101 with a density of 1,150 kg per cubic meter.

The finished part has a volume of 208,022.03 cubic millimeters and a mass of 239.23 grams.

Reminder: Pay close attention to the patterns of holes.

The associated files may be downloaded below.
