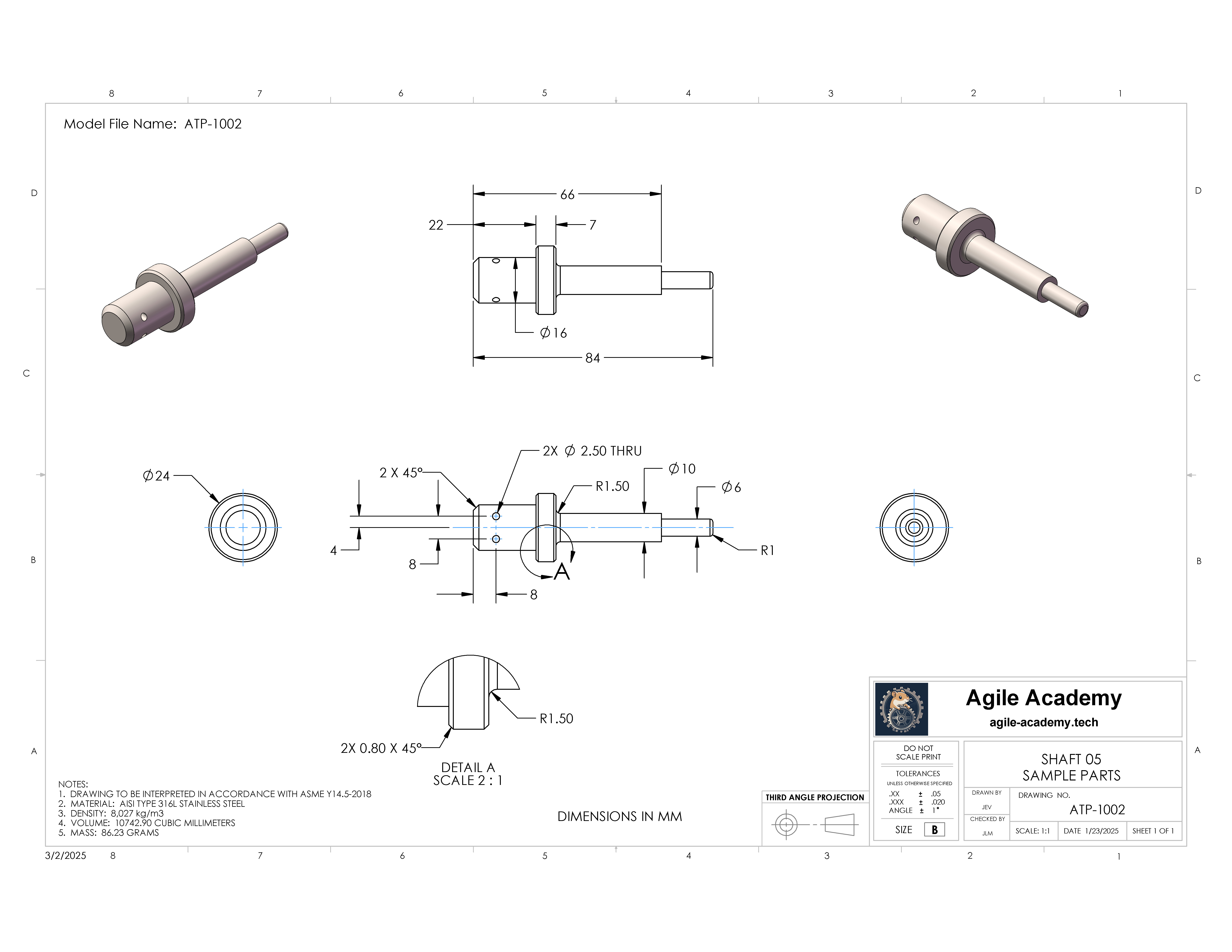

SolidWorks study part ATP-1002

This is a stainless steel shaft drawn in millimeters. It is made of AISI Type 316L stainless steel with a density of 8,027 kg per cubic meter.

The finished part has a volume of 10,742.90 cubic millimeters and a mass of 86.23 grams.

Reminder: The thru holes do not intersect the centerline of the part.

The associated files may be downloaded below.
