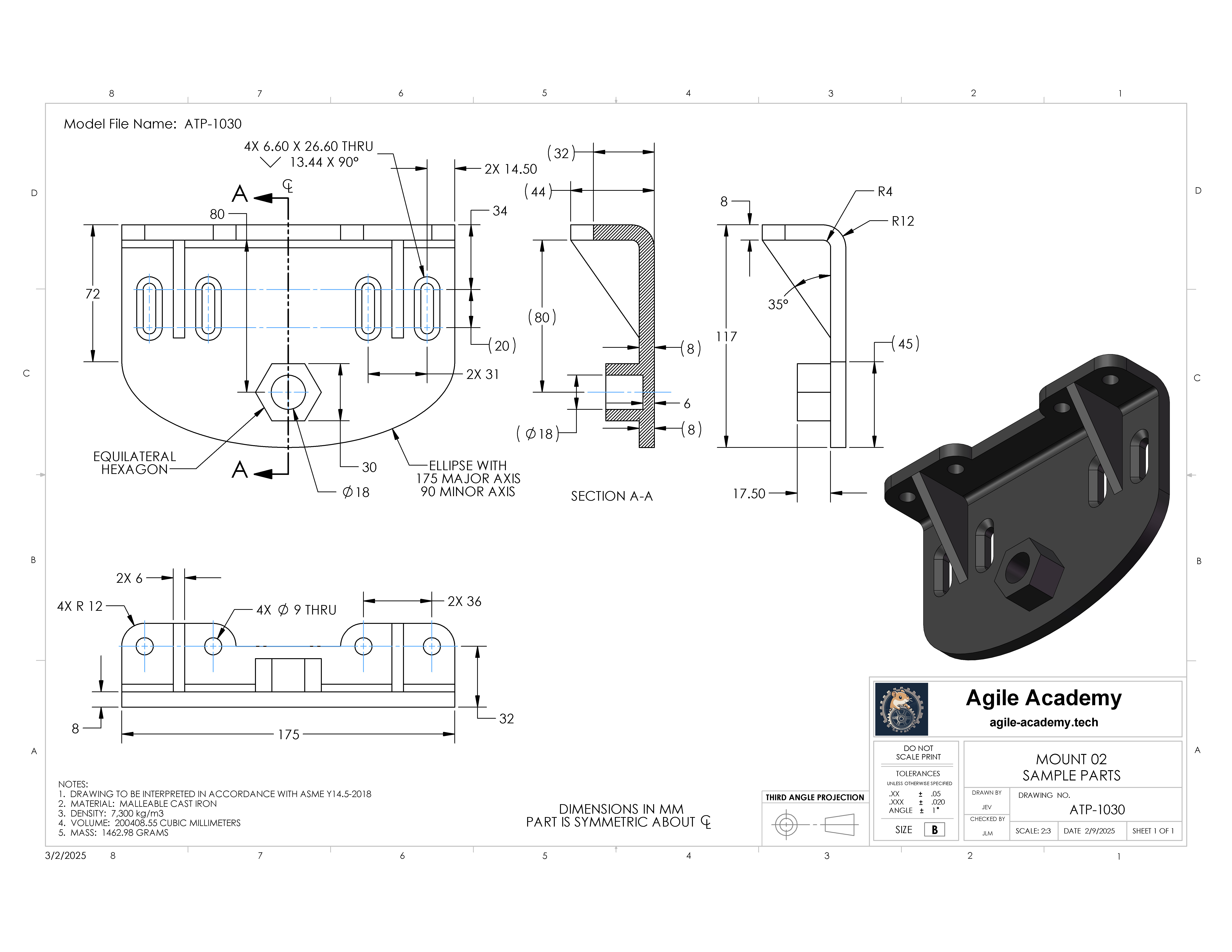

SolidWorks study part ATP-1030

This is a cast iron mount drawn in millimeters. It is made of Malleable Cast Iron with a density of 7,300 kg per cubic meter.

The finished part has a volume of 200,408.55 cubic millimeters and a mass of 1,462.98 grams.

Reminder: The part symmetry can be leveraged to model the part more quickly.

The associated files may be downloaded below.
