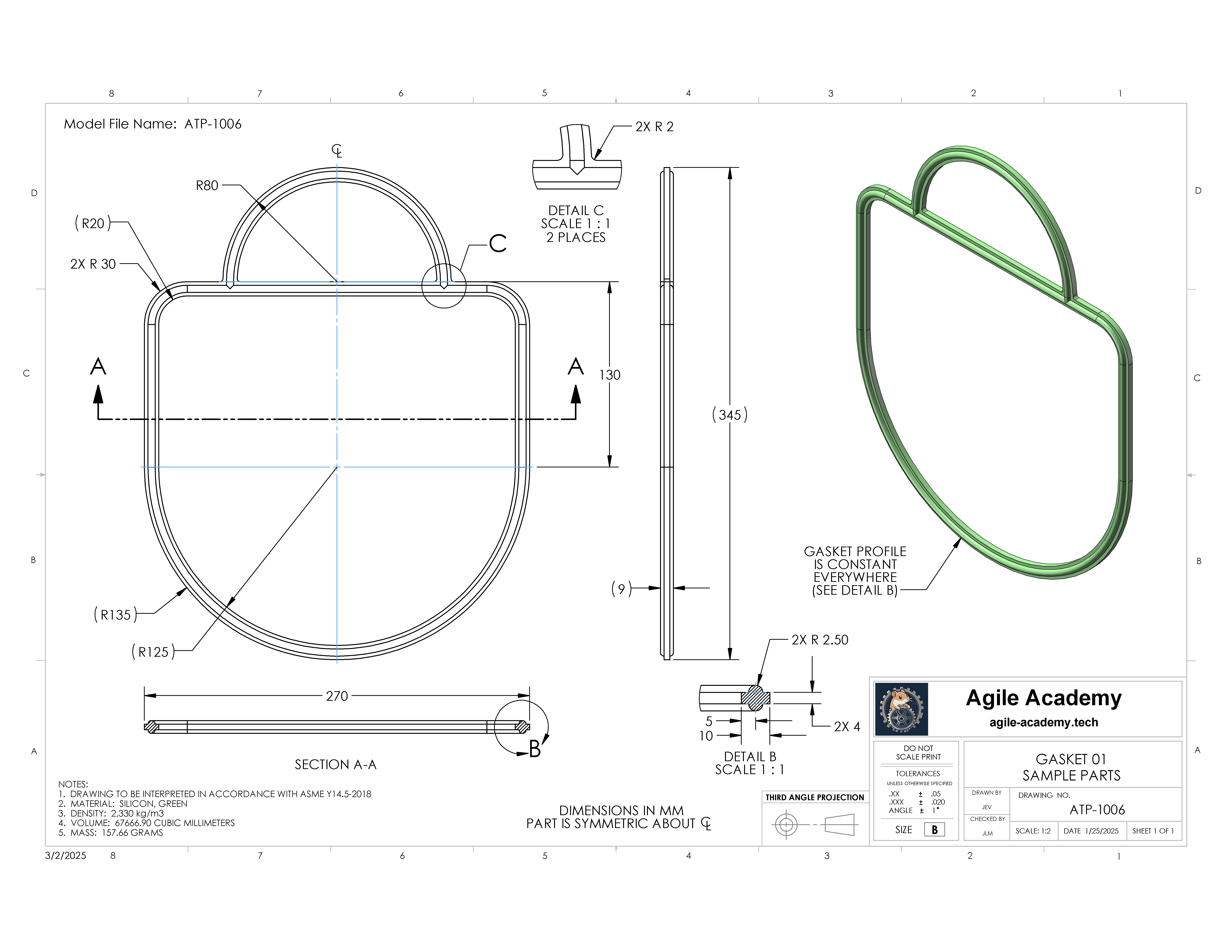

SolidWorks study part ATP-1006

This is a silicon gasket drawn in millimeters. It is made of silicon with a density of 2,330 kg per cubic meter.

The finished part has a volume of 67,666.90 cubic millimeters and a mass of 157.66 grams.

Reminders: This gasket has the same profile everywhere.

The associated files may be downloaded below.
