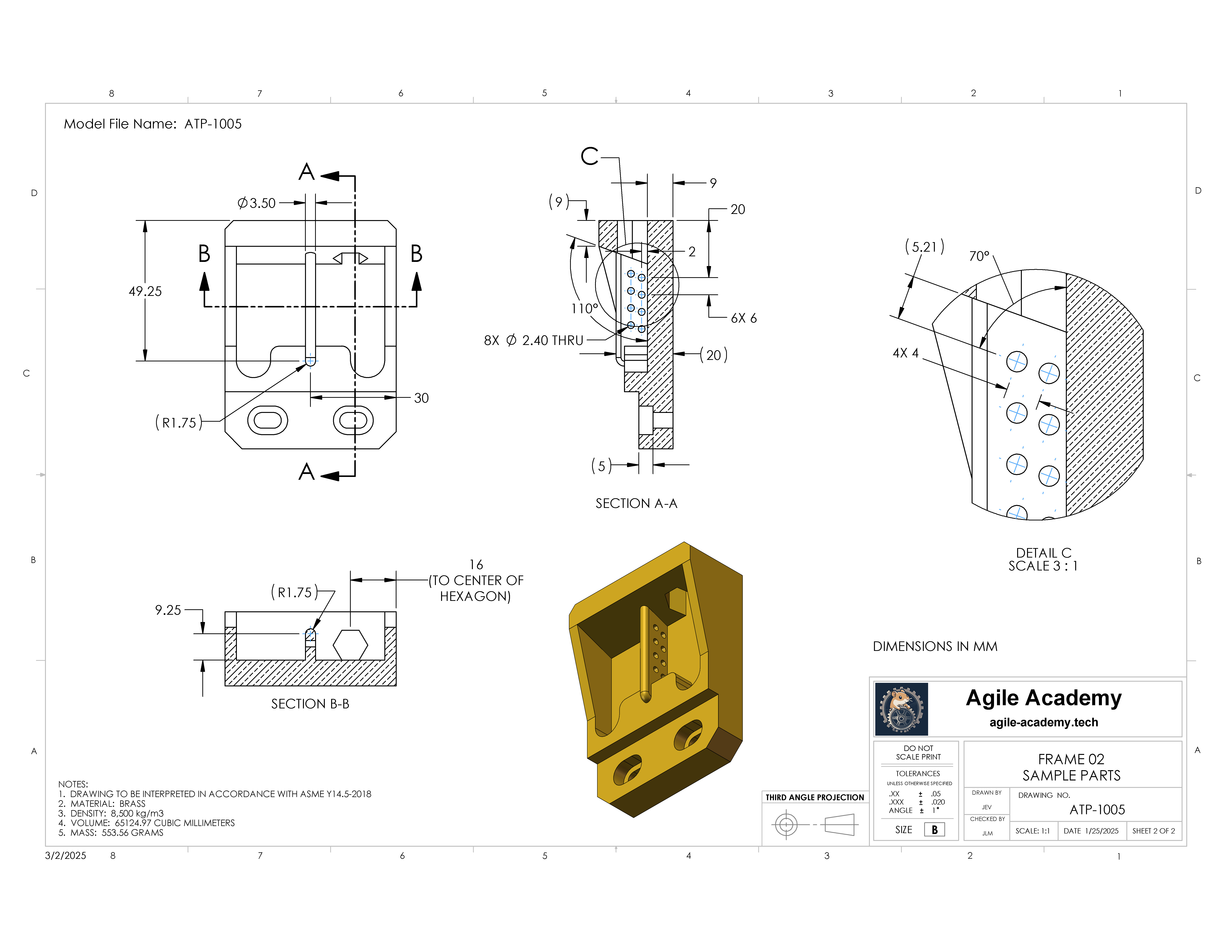

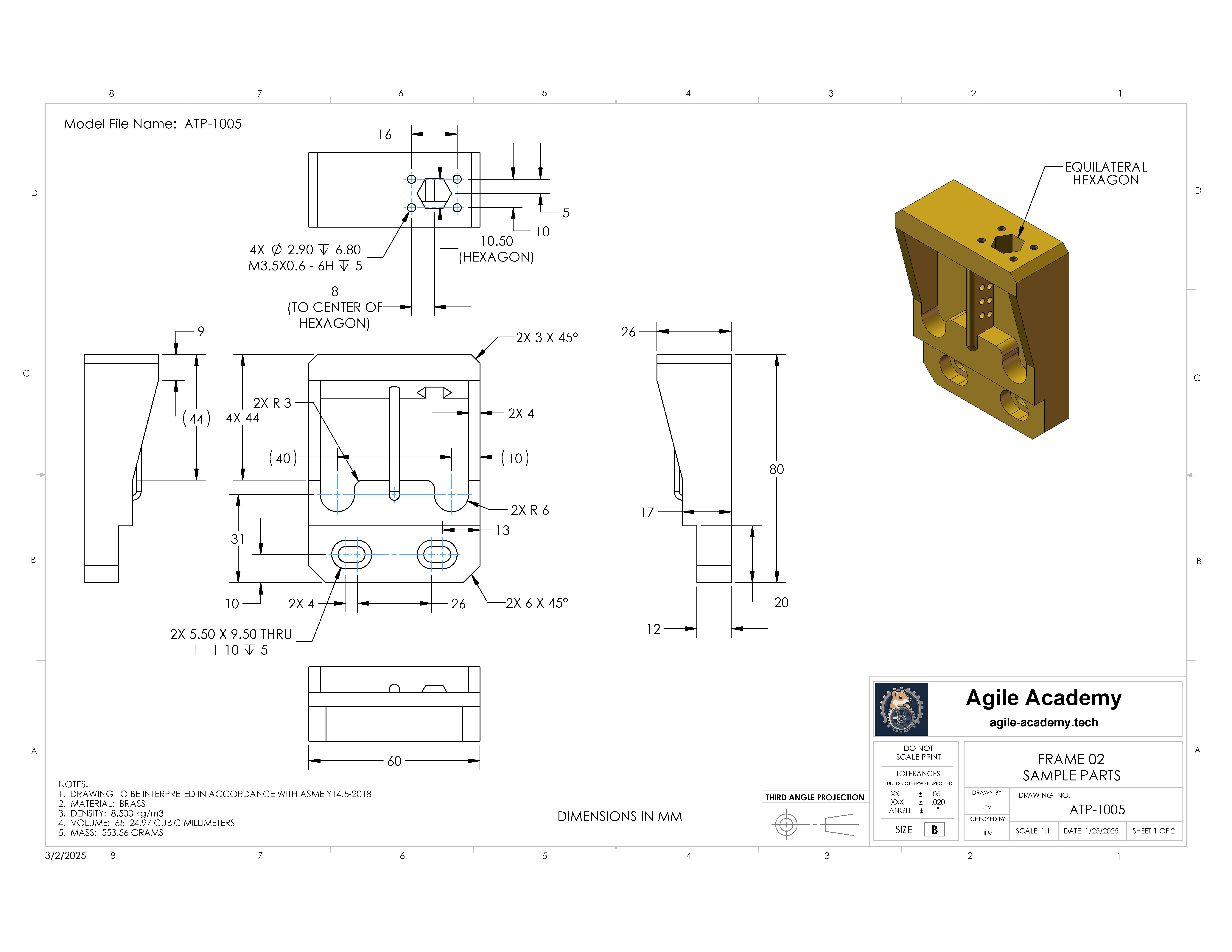

SolidWorks study part ATP-1005

This is a brass frame drawn in millimeters. It is made of brass with a density of 8,500 kg per cubic meter.

The finished part has a volume of 65,124.97 cubic millimeters and a mass of 553.56 grams.

Reminders: The hexagon shaped hole has equal sides. Pay close attention to the directions of the pattern of round holes.

The associated files may be downloaded below.
