SolidWorks study part ATP-1004

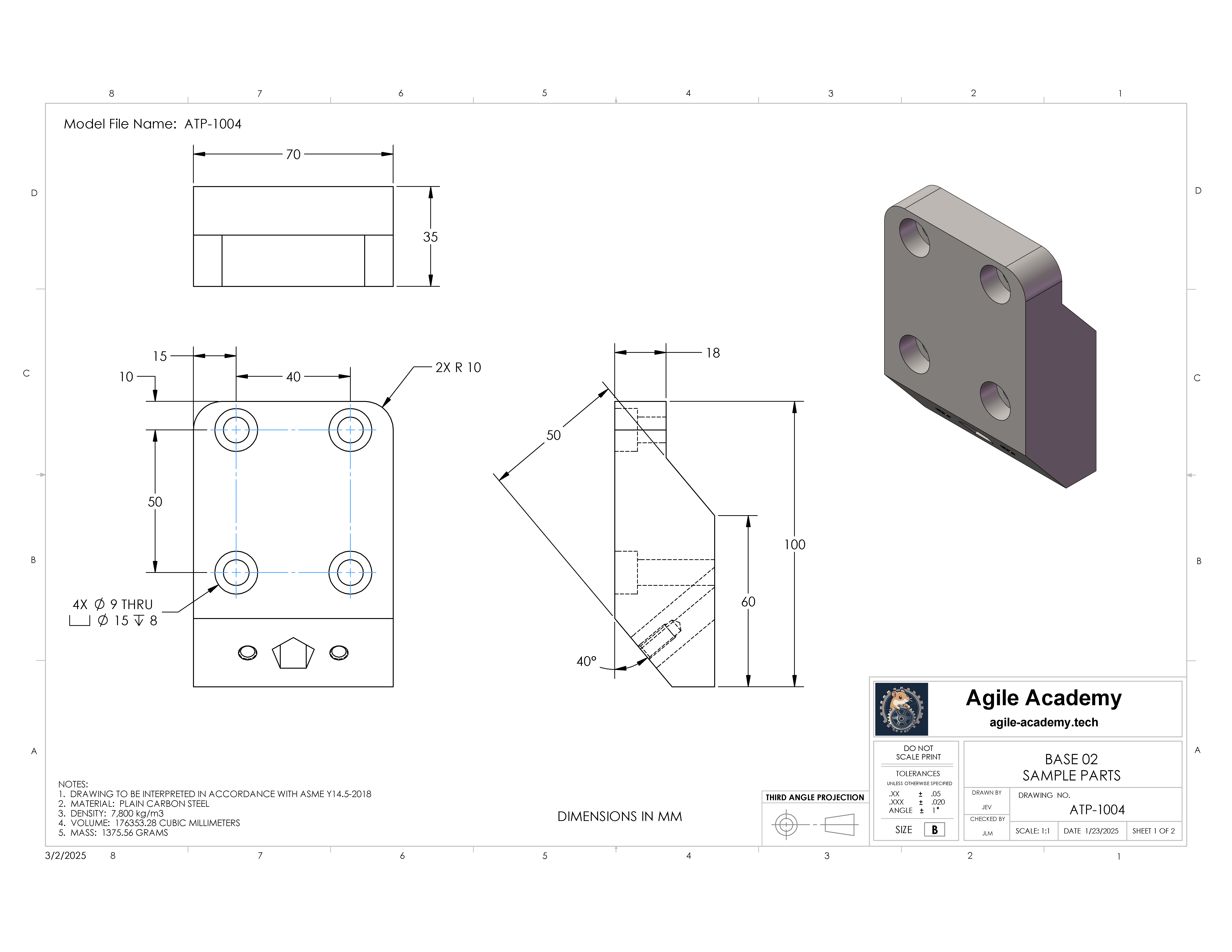

This is a steel base drawn in millimeters. It is made of plain carbon steel with a density of 7,800 kg per cubic meter.

The finished part has a volume of 176,353.28 cubic millimeters and a mass of 1,375.56 grams.

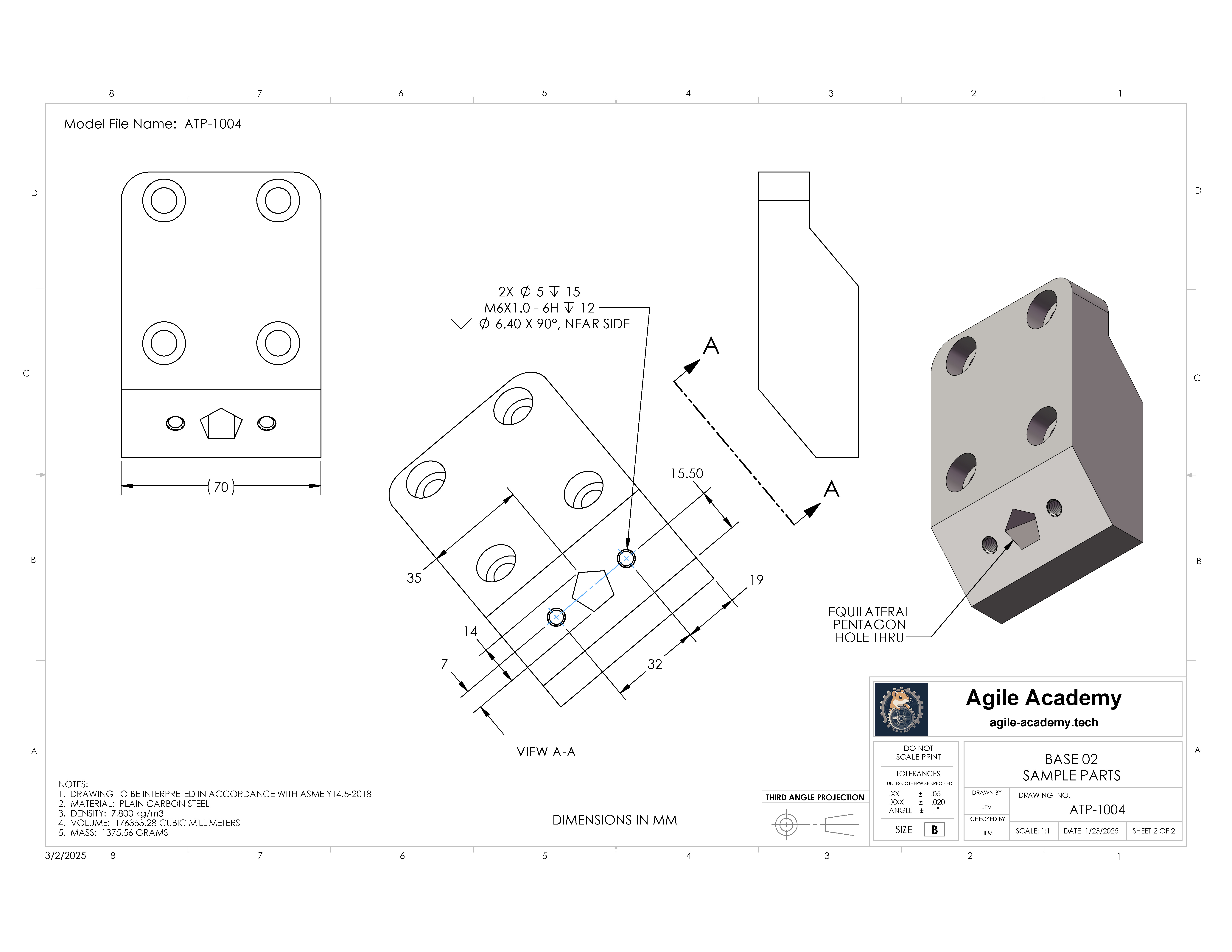

Reminder: The pentagon shaped hole has equal sides.

The associated files may be downloaded below.
