SolidWorks study part ATP-015

This is a brass manifold drawn in inches. It is made of brass with a density of 8,500 kg per cubic meter.

The finished part has a volume of 39.878 cubic inches and a mass of 12.246 pounds.

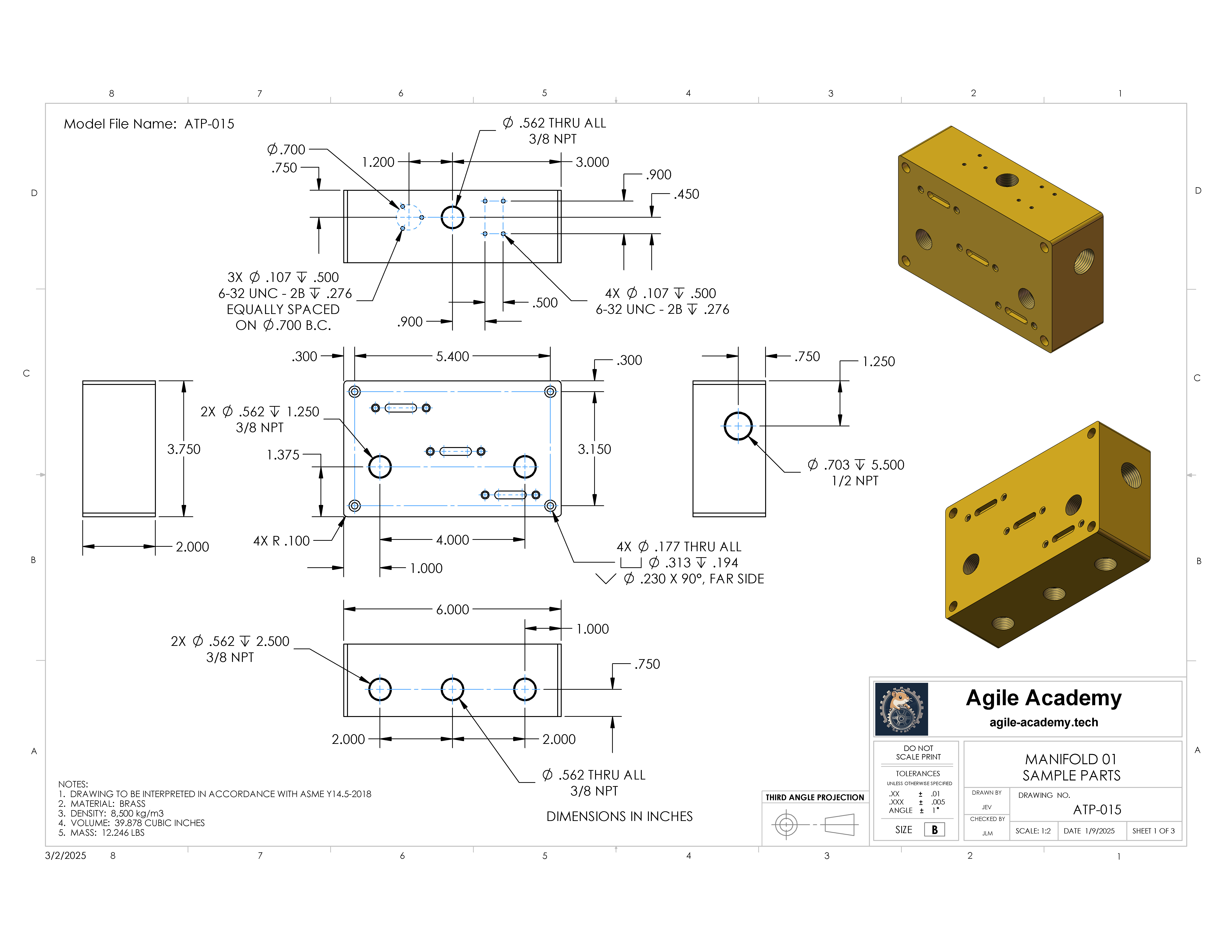

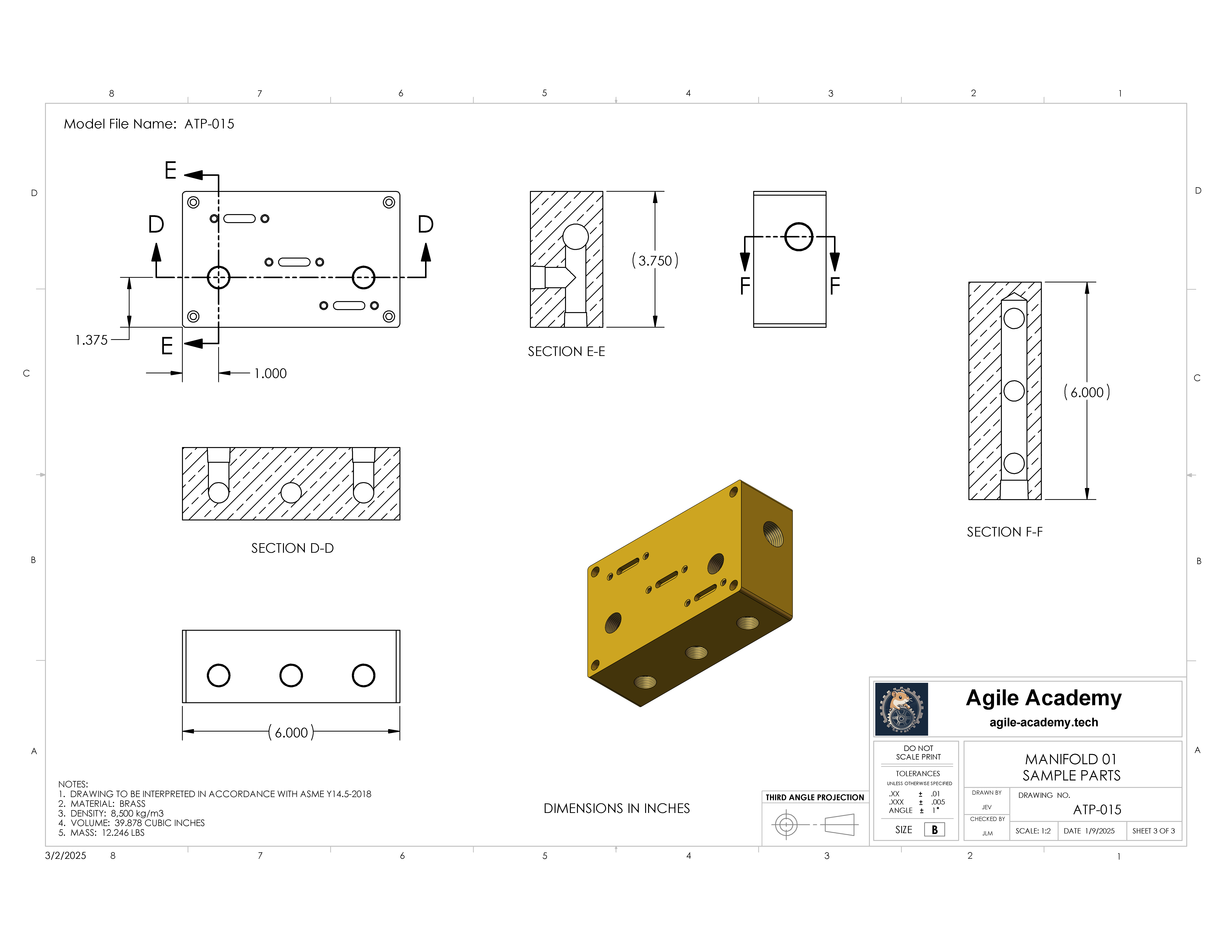

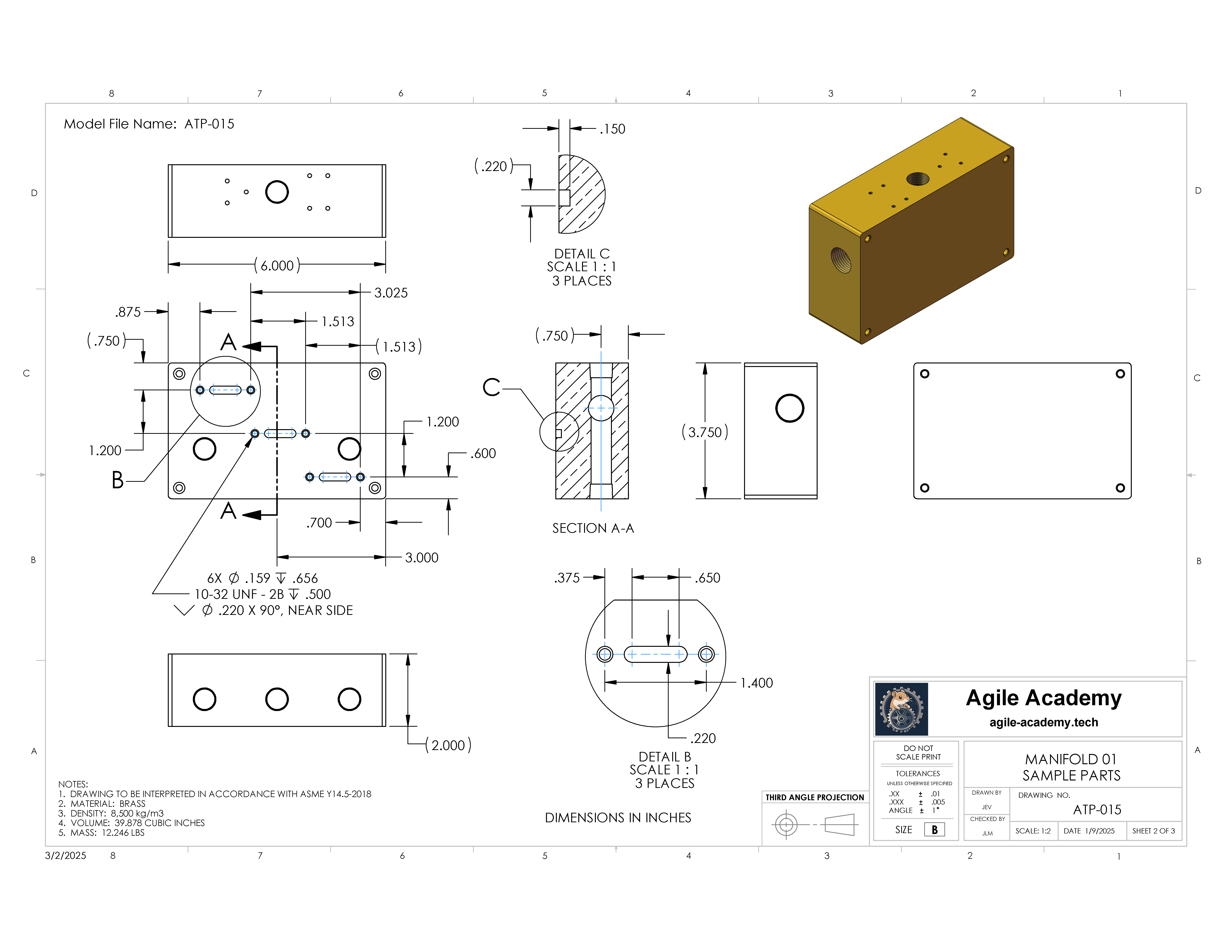

Reminder: Pay close attention to the intersecting holes with NPT threads at the ends. Additionally, the drill depths do not include the conical tip of the drill bit.

The associated files may be downloaded below.
