SolidWorks study part ATP-004

This is a nylon adapter drawn in inches. It is made of PA type 6 (nylon) with a density of 1,120 kg per cubic meter.

The finished part has a volume of 2.628 cubic inches and a mass of 0.106 pounds.

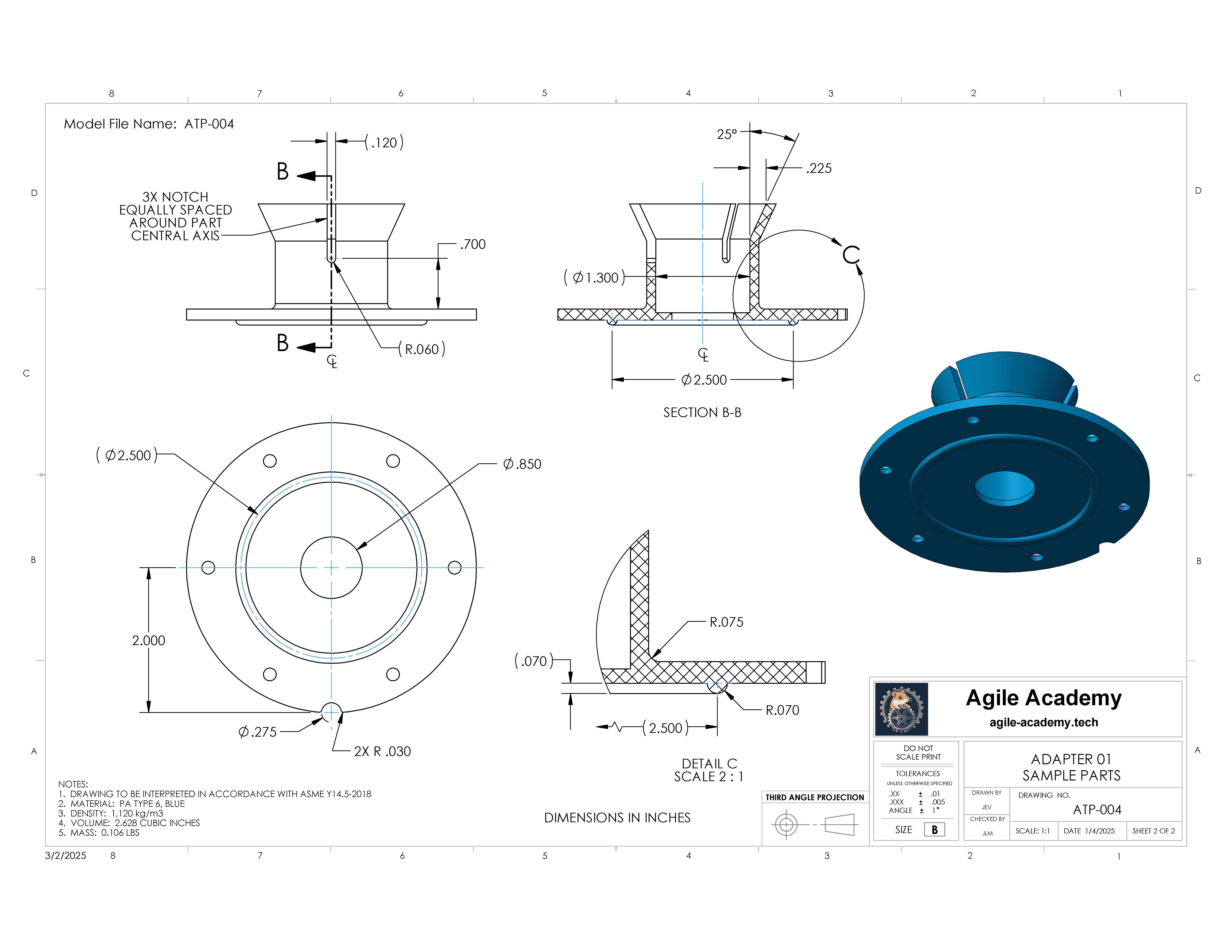

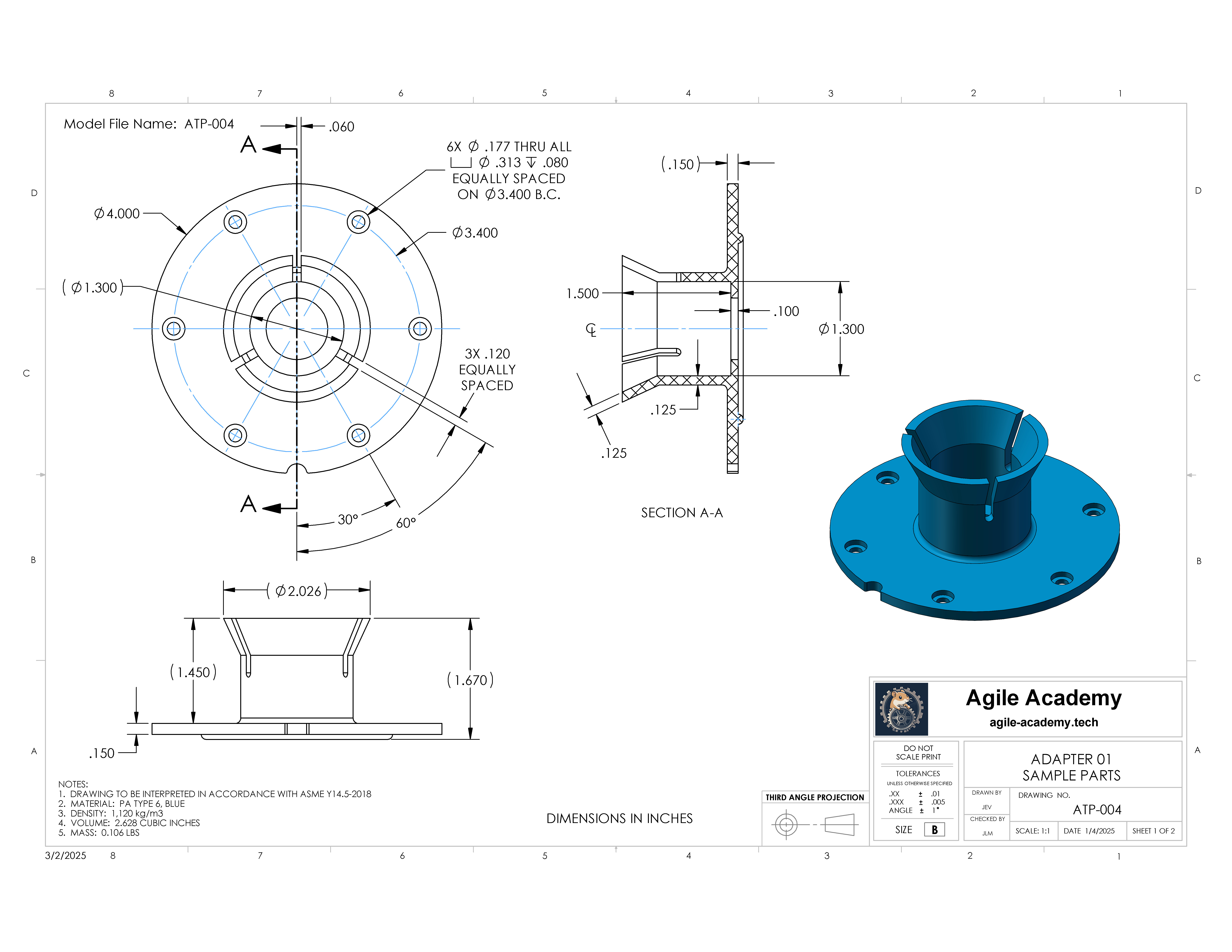

Reminder: Pay attention to the position (angle) of the notch in the outer perimeter in relation to the three slots.

The associated files may be downloaded below.
