SolidWorks study part ATP-003

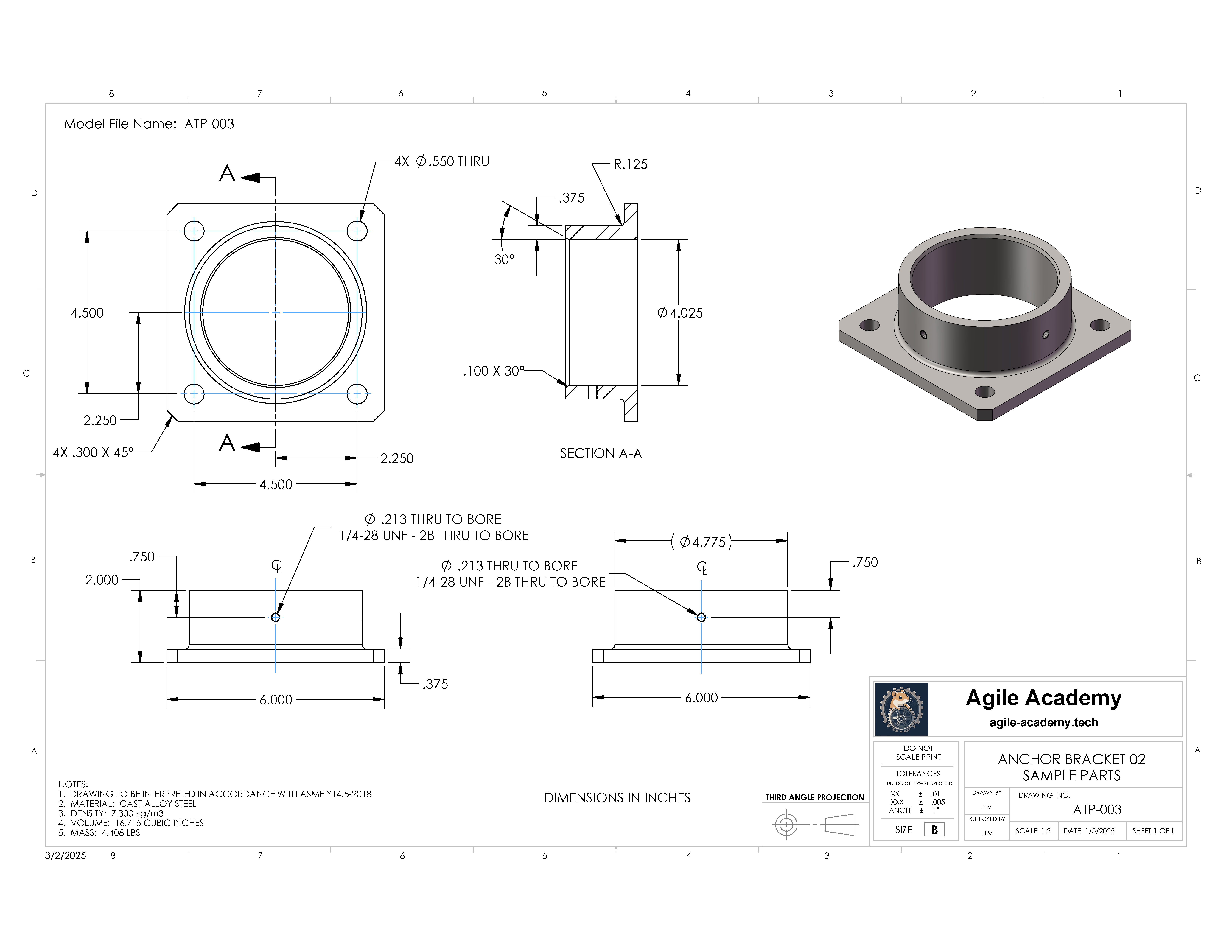

This is a steel anchor bracket drawn in inches. It is made of cast alloy steel with a density of 7,300 kg per cubic meter.

The finished part has a volume of 16.715 cubic inches and a mass of 4.408 pounds.

Reminder: Pay attention to the hole patterns.

The associated files may be downloaded below.
