SolidWorks study part ATP-001

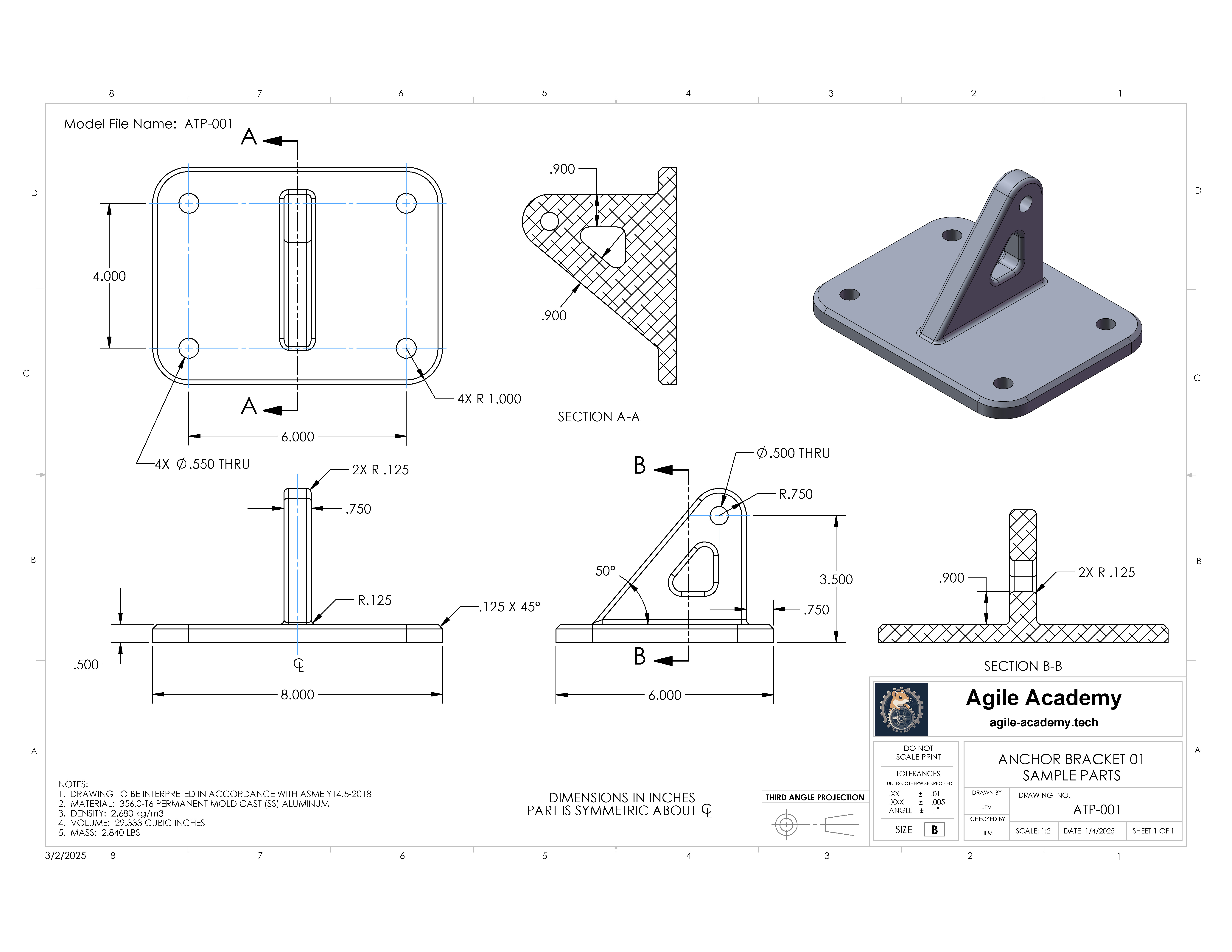

This is an aluminum anchor bracket drawn in inches. It is made of 356.0-T6 permanent mold cast (SS) aluminum with a density of 2,680 kg per cubic meter.

The finished part has a volume of 29.333 cubic inches and a mass of 2.840 pounds.

Reminder: Pay attention to tangent propagation when adding chamfers and fillets.

The associated files may be downloaded below.
